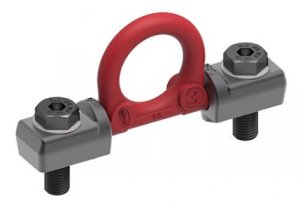

RBG - Load Ring

Patented relief lugs up to 16t. Protect the securing bolts against bending - and shearing loads.
This ensures additional safety!
Smaller bolt and a low profile due to the pivoting ring.
For description of the ring, refer to VRBS, page 28.
RUD special bolts (inner- and outer hexagon), 100% crack detected with special corrosion protection Delta ton.
Tension bolts to recommended torque (120 Nm) and secure with locking tabs supplied.
For sealing and securing of the bolts, Loctite 270 for example can be used.
Check tightness of bolts at regular intervals.
Workpiece material at least 1.0037 (St 37-2) S235JR.
Refer to RUD user instruction!

Mounting instructions:
Use RUD special bolts only.
Mount on plane bolting surfaces!

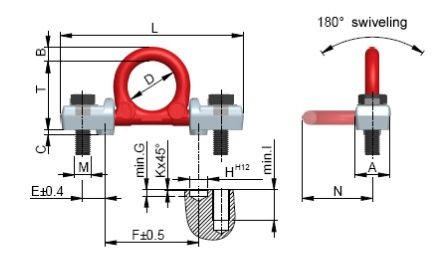

Scribing and drilling acc. to tolerance range of RBG:
1. First scribe pocket hole - relief bores size "F", drill and countersink acc. to sizes "H, G, K".
2. After fitting and straight adjustment of the bolting blocks, the bore for the tapped hole can be drilled.
3. Drill core hole and cut tapped hole. For through bolts, drill size "H" only.
