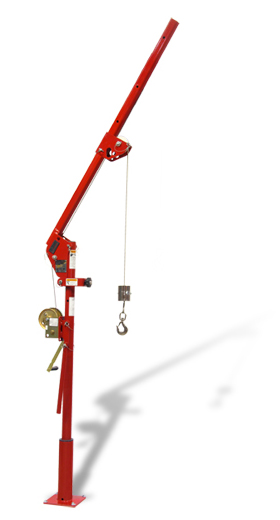

Ensign Series Model 5PA5 Portable Davit Crane 500 lb Cap.

The Ensign series portable davit cranes
are ideal for many applications. Simple set-up and easy to use.
This economical series is specially designed for clearance, lift height,
and ergonomic operation.

• Light & Portable
• Adjustable Boom Angle
• Adjustable Sheave Block
• Quick-Mount Winch Bracket
• Roller Bearing for Easy 360° Rotation
• Manual & Power Winch Operation
• Five Corrosion-Resistant Finishes
• Easy, No-Tools Assembly/Disassembly
• Variety of Bases
• 2-Year Warranty

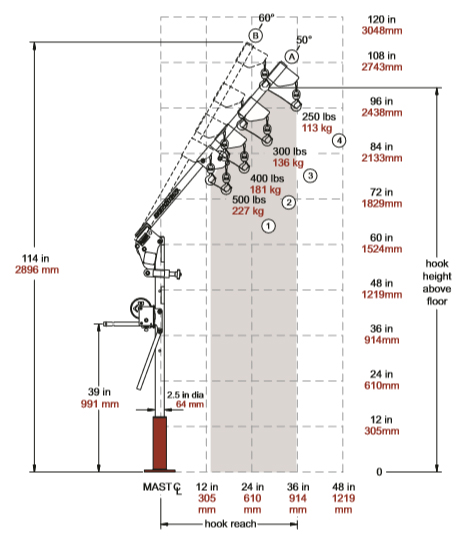

CRANE DIMENSIONS WITH PEDESTAL BASE
Ensign 500 Series Model 5PA5

Ensign 500 pedestal base

Ensign Specifications
Click Here
for Specifications

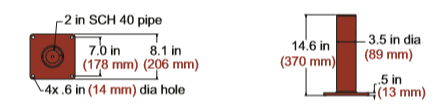

BASE DIMENSIONS OF PEDESTAL

Ensign Pedestal Base Specifications Davit Crane

2 year warranty

Important:
It is the owner's or operator's responsibility to determine the suitability of the equipment to its intended use.
Study all applicable codes, manuals, and regulations. Be sure to read the Owner's Manual supplied with equipment before operating it.

THERN PRODUCTS ARE NOT FOR LIFTING PEOPLE OR THINGS OVER PEOPLE!

Don't forget your wire rope assemblies (order 1/4" & 5/16" for this model)

LEAD TIME ON THERN PRODUCTS IS 5-8 WEEKS
PLEASE CALL TO CONFIRM AVAILABILITY BEFORE ORDERING 866-513-2715
