Small Length Lifting Beams Shackle Top

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with shackle connections.

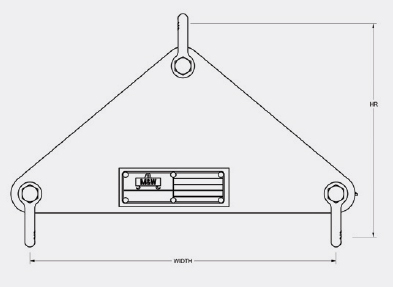

small length lift beams shackle top specifications

Part Number	Working Load Limit in Pounds*	Top Shackle Size	Headroom (HR) Inches	Width Inches	Weight in Pounds	Bottom Shackle Size
20358	500	3/8"	8.30	12.00	9.00	3/8"
20359	500	3/8"	8.30	24.00	16.00	3/8"
20360	500	3/8"	8.30	36.00	22.00	3/8"
20361	2,000	5/8"	12.40	12.00	19.00	5/8"
20362	2,000	5/8"	12.40	24.00	33.00	5/8"
20363	2,000	5/8"	12.40	36.00	46.00	5/8"
20364	6,000	3/4"	14.10	12.00	32.00	3/4"
20365	6,000	3/4"	14.10	24.00	54.00	3/4"
20366	6,000	3/4"	14.10	36.00	73.00	3/4"
24047	10,000	7/8"	17	12.00	40.00	3/4"
24048	10,000	7/8"	17	24.00	62.00	3/4"
24049	10,000	7/8"	17	36.00	86.00	3/4"
20367	20,000	1-1/4"	21.20	24.00	107.00	7/8"
20368	20,000	1-1/4"	21.20	36.00	145.00	7/8"
24050	40,000	1-3/4"	32	24.00	271.00	1-1/4"
24051	40,000	1-3/4"	32	36.00	346.00	1-1/4"
24052	80,000	2-1/2"	42	24.00	585.00	1-3/4"
24053	80,000	2-1/2"	42	36.00	725.00	1-3/4"
* Call for specifications on larger sizes and capacities 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
20358	WLL 500 lbs. x 12" Small Length Lifting Beams Shackle Top 3/8" Bottom - 3/8" Top Shackle	M&W	9 lbs	$412.18	+ -
20359	WLL 500 lbs. x 24" Small Length Lifting Beams Shackle Top 3/8" Bottom - 3/8" Top Shackle	M&W	16 lbs	$480.87	+ -
20360	WLL 500 lbs. x 36" Small Length Lifting Beams Shackle Top 3/8" Bottom - 3/8" Top Shackle	M&W	22 lbs	$577.05	+ -
20361	WLL 2,000 lbs. x 12" Small Length Lifting Beams Shackle Top 5/8" Bottom - 5/8" Top Shackle	M&W	19 lbs	$783.14	+ -
20362	WLL 2,000 lbs. x 24" Small Length Lifting Beams Shackle Top 5/8" Bottom - 5/8" Top Shackle	M&W	33 lbs	$934.27	+ -
20363	WLL 2,000 lbs. x 36" Small Length Lifting Beams Shackle Top 5/8" Bottom - 5/8" Top Shackle	M&W	46 lbs	$1099.14	+ -
20364	WLL 6,000 lbs. x 12" Small Length Lifting Beams Shackle Top 3/4" Bottom - 3/4" Top Shackle	M&W	32 lbs	$1112.88	+ -
20365	WLL 6,000 lbs. x 24" Small Length Lifting Beams Shackle Top 3/4" Bottom - 3/4" Top Shackle	M&W	54 lbs	$1332.70	+ -
20366	WLL 6,000 lbs. x 36" Small Length Lifting Beams Shackle Top 3/4" Bottom - 3/4" Top Shackle	M&W	73 lbs	$1415.14	+ -
24047	WLL 10,000 lbs. x 12" Small Length Lifting Beams Shackle Top 3/4" Bottom - 7/8" Top Shackle	M&W	40 lbs	$850.52	+ -
24048	WLL 10,000 lbs. x 24" Small Length Lifting Beams Shackle Top 3/4" Bottom - 7/8" Top Shackle	M&W	62 lbs	$1007.54	+ -
24049	WLL 10,000 lbs. x 36" Small Length Lifting Beams Shackle Top 3/4" Bottom - 7/8" Top Shackle	M&W	86 lbs	$1138.39	+ -
20367	WLL 20,000 lbs. x 24" Small Length Lifting Beams Shackle Top 7/8" Bottom - 1 1/4" Top Shackle	M&W	107 lbs	$2376.88	+ -
20368	WLL 20,000 lbs. x 36" Small Length Lifting Beams Shackle Top 7/8" Bottom - 1 1/4" Top Shackle	M&W	145 lbs	$3269.93	+ -
24050	WLL 40,000 lbs. x 24" Small Length Lifting Beams Shackle Top 1 1/4" Bottom - 1 3/4" Top Shackle	M&W	271 lbs	$3977.83	+ -
24051	WLL 40,000 lbs. x 36" Small Length Lifting Beams Shackle Top 1 1/4" Bottom - 1 3/4" Top Shackle	M&W	346 lbs	$4605.91	+ -
24052	WLL 80,000 lbs. x 24" Small Length Lifting Beams Shackle Top 1 3/4" Bottom - 2 1/2" Top Shackle	M&W	585 lbs	$6110.68	+ -
24053	WLL 80,000 lbs. x 36" Small Length Lifting Beams Shackle Top 1 3/4" Bottom - 2 1/2" Top Shackle	M&W	725 lbs	$6995.23	+ -

Small Length Lifting Beams Shackle Top
