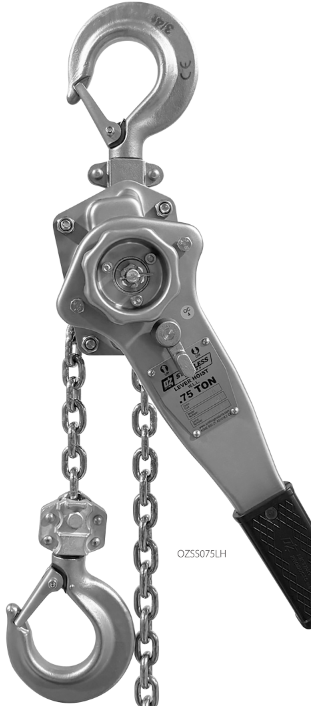

Stainless Steel Lever Hoist

Type 304 Stainless Steel Construction
Food-Grade Grease That Meets Nsf-H1 Standards
Free Wheel Feature Allows For Quick Adjustment
Designed For Lifting or Pulling
Minimal Load Lifting Effort
360-Degree Handle Rotation
Weston-Style Brake System
Twin Pawl Design
Enclosed Gearing
Sealed Roller Bearing
Rubber Grip
Forged Hooks
Stainless Steel Riveted ID Tags
Quick Disassembly for Fast & Easy Maintenance

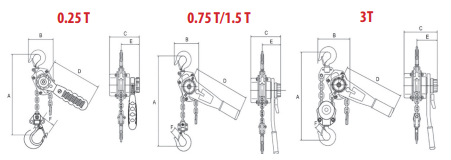

Part Number	Capacity (tons)	Standard Lift Height (ft.)	Falls of Chain	Headroom (in.)	Effort in Falls of Chain	Load Chain Diameter	Dim A (in.)	Dim B (in.)	Dim C (in.)	Dim D (in.)	Dim E (in.)	Dim F Hook Opening upper & lower (in.)	Net Weight head only (lbs)
OZSS025-5LH	0.25 TON	10 Ft.	1	11.22	20.20	4 mm	11.22	3.86	3.94	6.10	2.40	0.92	4.84
OZSS025-10LH	0.25 TON	15 Ft.	1	11.22	20.20	4 mm	11.22	3.86	3.94	6.10	2.40	0.92	4.84
OZSS025-15LH	0.25 TON	20 Ft.	1	11.22	20.20	4 mm	11.22	3.86	3.94	6.10	2.40	0.92	4.84
OZSS025-20LH	0.25 TON	30 Ft.	1	11.22	20.20	4 mm	11.22	3.86	3.94	6.10	2.40	0.92	4.84
OZSS075-5LH	0.75 TON	10 Ft.	1	14.96	28.10	6 mm	14.96	5.83	5.67	11.42	3.43	1.21	12.54
OZSS075-10LH	0.75 TON	15 Ft.	1	14.96	28.10	6 mm	14.96	5.83	5.67	11.42	3.43	1.21	12.54
OZSS075-15LH	0.75 TON	20 Ft.	1	14.96	28.10	6 mm	14.96	5.83	5.67	11.42	3.43	1.21	12.54
OZSS075-20LH	0.75 TON	30 Ft.	1	14.96	28.10	6 mm	14.96	5.83	5.67	11.42	3.43	1.21	12.54
OZSS150-5LH	1.5 TON	10 Ft.	1	16.73	41.50	8 mm	16.73	5.91	6.61	16.34	3.74	1.38	20.35
OZSS150-10LH	1.5 TON	15 Ft.	1	16.73	41.50	8 mm	16.73	5.91	6.61	16.34	3.74	1.38	20.35
OZSS150-15LH	1.5 TON	20 Ft.	1	16.73	41.50	8 mm	16.73	5.91	6.61	16.34	3.74	1.38	20.35
OZSS150-20LH	1.5 TON	30 Ft.	1	16.73	41.50	8 mm	16.73	5.91	6.61	16.34	3.74	1.38	20.35
OZSS300-5LH	3 TON	10 Ft.	2	19.76	42.70	8 mm	19.76	7.68	6.61	16.34	3.74	1.52	28.71
OZSS300-10LH	3 TON	15 Ft.	2	19.76	42.70	8 mm	19.76	7.68	6.61	16.34	3.74	1.52	28.71
OZSS300-15LH	3 TON	20 Ft.	2	19.76	42.70	8 mm	19.76	7.68	6.61	16.34	3.74	1.52	28.71
OZSS300-20LH	3 TON	30 Ft.	2	19.76	42.70	8 mm	19.76	7.68	6.61	16.34	3.74	1.52	28.71

Part Number	Description	Brand	Weight	Price	Quantity
OZSS025-5LH	1/4 ton Stainless Steel Lever Hoist - 5 ft. Lift	Oz Lifting Products	7 lbs	$934.00	+ -
OZSS025-10LH	1/4 ton Stainless Steel Lever Hoist - 10 ft. Lift	Oz Lifting Products	9 lbs	$1013.70	+ -
OZSS025-15LH	1/4 ton Stainless Steel Lever Hoist - 15 ft. Lift	Oz Lifting Products	10 lbs	$1093.40	+ -
OZSS025-20LH	1/4 ton Stainless Steel Lever Hoist - 20 ft. Lift	Oz Lifting Products	11 lbs	$1173.10	+ -
OZSS075-5LH	3/4 ton Stainless Steel Lever Hoist - 5 ft. Lift	Oz Lifting Products	17 lbs	$1448.60	+ -
OZSS075-10LH	3/4 ton Stainless Steel Lever Hoist - 10 ft. Lift	Oz Lifting Products	20 lbs	$1528.40	+ -
OZSS075-15LH	3/4 ton Stainless Steel Lever Hoist - 15 ft. Lift	Oz Lifting Products	22 lbs	$1608.20	+ -
OZSS075-20LH	3/4 ton Stainless Steel Lever Hoist - 20 ft. Lift	Oz Lifting Products	25 lbs	$1688.00	+ -
OZSS150-5LH	1.5 ton Stainless Steel Lever Hoist - 5 ft. Lift	Oz Lifting Products	28 lbs	$1726.00	+ -
OZSS150-10LH	1.5 ton Stainless Steel Lever Hoist - 10 ft. Lift	Oz Lifting Products	32 lbs	$1831.00	+ -
OZSS150-15LH	1.5 ton Stainless Steel Lever Hoist - 15 ft. Lift	Oz Lifting Products	37 lbs	$1936.00	+ -
OZSS150-20LH	1.5 ton Stainless Steel Lever Hoist - 20 ft. Lift	Oz Lifting Products	42 lbs	$2041.00	+ -
OZSS300-5LH	3 ton Stainless Steel Lever Hoist - 5 ft. Lift	Oz Lifting Products	42 lbs	$3391.50	+ -
OZSS300-10LH	3 ton Stainless Steel Lever Hoist - 10 ft. Lift	Oz Lifting Products	51 lbs	$3601.50	+ -
OZSS300-15LH	3 ton Stainless Steel Lever Hoist - 15 ft. Lift	Oz Lifting Products	60 lbs	$3811.50	+ -
OZSS300-20LH	3 ton Stainless Steel Lever Hoist - 20 ft. Lift	Oz Lifting Products	69 lbs	$4021.50	+ -

Stainless Steel Lever Hoist
