Standard Fixed Forks Pallet Lifter

PRODUCT FEATURES:

Converts overhead crane to lift truck.
Counter balanced to hang level when empty.
Maintenance free.
Allows for ease of loading/unloading in not easily accessible areas.
Complies with ASME standards.

Frame with fixed forks width for handling loads similar in size and shape or repetitive handling of the same size load.

Caldwell Lightweight Pallet Lifter

Model 90 Specifications

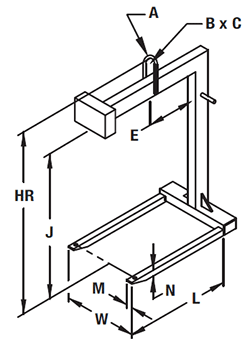

Dimensional Information (all dimensions in inches, unless otherwise specified)

Part Number	Reference Number	Capacity (tons)	L	M	N	W	E	A	B	C	J*	HR	Weight (lbs.)
90-1-36	35-0111	1	36	2	2	25	18	1	6	5	48	57-1/2	292
90-1-42	35-0112	1	42	2	2	25	21	1	6	5	48	57-1/2	310
90-1-48	35-0113	1	48	2	2	25	24	1	6	5	48	58-1/2	371
90-1.1/2-36	35-0121	1-1/2	36	3	2	25	18	1	6	5	48	58-1/2	388
90-1.1/2-42	35-0122	1-1/2	42	3	2	25	21	1	6	5	48	58-1/2	432
90-1.1/2-48	35-0123	1.1/2	48	3	2	25	24	1	6	5	48	58-1/2	459
90-2-36	35-0131	2	36	3	2	25	18	1	6	5	48	59-1/2	448
90-2-42	35-0132	2	42	4	2	25	21	1	6	5	48	59-1/2	536
90-2-48	35-0133	2	48	4	2	25	24	1	6	5	48	59-1/2	627
90-3-42	35-0142	3	42	4-1/2	2-1/2	25	21	1-1/2	6-1/8	7	48	61-1/2	766
90-3-48	35-0143	3	48	4-1/2	2-1/2	27	24	1-1/2	6-1/8	7	48	61-1/2	823
90-3-54	35-0144	3	54	4-1/2	2-1/2	3	27	1-1/2	6-1/8	7	48	61-1/2	969
90-4-48	35-0145	4	48	5	3	27	24	1-1/2	6-1/8	7	48	63-1/2	1176
90-4-60	35-0146	4	60	5	3	30	30	1-1/2	6-1/8	7	60	75-1/2	1393
90-5-48	35-0147	5	48	5	3	30	24	1-1/2	6-1/8	7	48	63-1/2	1193
90-5-60	35-0148	5	60	4-1/2	2-1/2	38	30	1-1/2	8-1/8	7	60	75-1/2	1403

Part Number	Description	Brand	Weight	Price	Quantity
90-1 1/2-36	35-0121 1-1/2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	388 lbs	$4190.00	+ -
90-1-36	35-0111 1 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	292 lbs	$3752.00	+ -
90-2-36	35-0131 2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	448 lbs	$4546.00	+ -
90-3-42	35-0142 3 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	766 lbs	$6233.00	+ -
90-4-48	35-0145 4 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	1176 lbs	$9128.00	+ -
90-5-48	35-0147 5 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	1193 lbs	$9492.00	+ -
90-1-42	35-0112 1 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	310 lbs	$3930.00	+ -
90-1-48	35-0113 1 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	371 lbs	$4130.00	+ -
90-1 1/2-42	35-0122 1-1/2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	432 lbs	$4546.00	+ -
90-1 1/2-48	35-0123 1-1/2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	459 lbs	$4964.00	+ -
90-2-42	35-0132 2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	536 lbs	$4964.00	+ -
90-2-48	35-0133 2 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	627 lbs	$5379.00	+ -
90-3-48	35-0143 3 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	823 lbs	$7224.00	+ -
90-3-54	35-0144 3 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	969 lbs	$7838.00	+ -
90-4-60	35-0146 4 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	1393 lbs	$12307.00	+ -
90-5-60	35-0148 5 Ton Standard Fixed Forks Pallet Lifter	The Caldwell Group	1403 lbs	$13751.00	+ -

Standard Fixed Forks Pallet Lifter

Model 90 Specifications
