Sub-Assembly (CM)

Herc-Alloy 1000 WLL: 7,000 to 91,700 lbs. Sizes: 1/2 to 1-3/4 in.

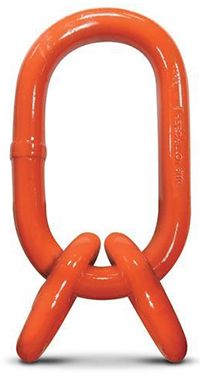

Designed primarily for constructing slings with multiple branches, oblong Master Link
Sub-Assemblies allow you to construct a sling using mechanical couplers between
the welded master couplers and the chain branches.

Designed for triple and quad branch Herc-Alloy® chain slings
Consists of an oblong master link and two welded master coupling links
Accepts both Herc-Alloy 1000 & 800 chain and components
Durable orange powder coated finish
May be used for mechanical or welded sling assemblies
100% proof tested
Design factor 4:1

CM Logo Made in the USA

Part Number	Size (in)	Working Load Limit (lbs)	Weight (lbs)	Master Link Nominal Dimensions (in)			Intermediate Link Nominal Dimensions (in)
Part Number	Size (in)	Working Load Limit (lbs)	Weight (lbs)	Material Diameter A	Inside Length B	Inside Width C	Material Diameter D	Inside Width E	Inside Length F
555274	1/2	7,000	1.35	0.56	5.00	2.00	0.44	1.06	1.75
555275	3/4	11,200	2.64	0.75	5.50	2.75	0.47	0.88	1.56
555276	1	22,900	7.25	1.00	7.00	3.50	0.78	1.50	2.63
555277	1-1/4	39,000	13.51	1.25	8.75	4.38	0.91	1.75	3.13
555278	1-1/2	58,700	24.28	1.50	10.50	5.25	1.13	2.25	4.00
555279	1-3/4	91,700	44.58	1.75	12.00	6.00	1.50	2.75	5.25

Part Number	Description	Brand	Weight	Price	Quantity
555274	1/2" Grade 100 Sub-Assembly	CM	1.35 lbs	$96.28	+ -
555275	3/4" Grade 100 Sub-Assembly	CM	2.64 lbs	$111.39	+ -
555276	1" Grade 100 Sub-Assembly	CM	7.25 lbs	$163.30	+ -
555277	1-1/4" Grade 100 Sub-Assembly	CM	13.51 lbs	$213.55	+ -
555278	1-1/2" Grade 100 Sub-Assembly	CM	24.28 lbs	$441.64	+ -
555279	1-3/4" Grade 100 Sub-Assembly	CM	44.58 lbs	$830.99	+ -
