Swivel Rigging Hook w/ Latch (CM)

Swivel Rigging Hook w/ Latch (CM)

Herc-Alloy 1000 WLL: 1 to 22 Tons

Design factor 5:1
Pre-drilled for latches
Hooks furnished with or without latches
Powder coated orange
Hooks are heat treated, quenched and tempered
Chart Note: * Working Load Limits in Metric Tons

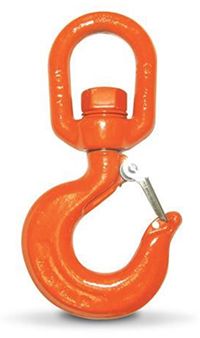

Swivel rigging hook CM

CM Logo Made in the USA

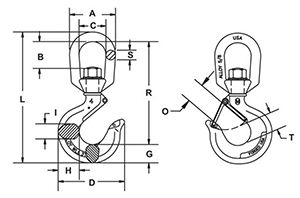

Part Number	WLL (tons)	Weight (lbs)	Dimensions )in)
Part Number	WLL (tons)	Weight (lbs)	A	B	C	D	G	H	I	L	R	S	T	O
M3502A	1	1.05	2.00	1.11	1.31	3.06	0.87	1.05	0.63	5.83	4.63	0.38	0.87	0.93
M3503A	1-1/2	1.56	2.50	1.38	1.50	3.33	0.94	1.11	0.71	6.83	5.44	0.50	0.97	0.97
M3504A	2	2.50	3.00	1.65	1.75	3.67	1.06	1.21	0.88	7.76	6.25	0.63	1.03	1.06
M3505A	3	3.20	3.00	1.65	1.75	4.20	1.27	1.43	0.94	8.40	6.49	0.63	1.16	1.16
M3507A	5	5.36	3.50	1.77	2.00	5.11	1.44	1.63	1.31	9.76	7.53	0.75	1.53	1.41
M3509A	7	10.56	4.75	2.39	2.75	6.24	1.82	2.01	1.68	12.42	9.67	1.00	1.94	1.69
M3511A	11	19.00	5.50	2.55	3.25	7.69	2.25	2.63	1.88	14.89	12.06	1.13	2.46	2.22
M3515A	15	26.75	6.00	2.47	3.50	8.37	2.59	2.94	2.19	15.79	11.95	1.25	2.62	2.23
M3522A	22	51.80	7.75	3.82	4.75	10.19	3.00	3.50	2.69	21.18	16.68	1.50	2.74	3.05

Part Number	Description	Brand	Weight	Price	Quantity
M3502A	1 ton Grade 100 Swivel Rigging Hook with Latch	CM	1.05 lbs	$57.97	+ -
M3503A	1-1/2 ton Grade 100 Swivel Rigging Hook with Latch	CM	1.56 lbs	$65.41	+ -
M3504A	2 ton Grade 100 Swivel Rigging Hook with Latch	CM	2.5 lbs	$77.06	+ -
M3505A	3 ton Grade 100 Swivel Rigging Hook with Latch	CM	3.2 lbs	$95.66	+ -
M3507A	5 ton Grade 100 Swivel Rigging Hook with Latch	CM	5.36 lbs	$140.93	+ -
M3509A	7 ton Grade 100 Swivel Rigging Hook with Latch	CM	10.56 lbs	$249.06	+ -
M3511A	11 ton Grade 100 Swivel Rigging Hook with Latch	CM	19 lbs	$467.68	+ -
M3515A	15 ton Grade 100 Swivel Rigging Hook with Latch	CM	26.75 lbs	$713.18	+ -
M3522A	22 ton Grade 100 Swivel Rigging Hook with Latch	CM	51.8 lbs	$1415.91	+ -
