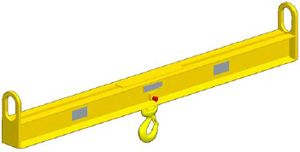

Twin Hoist 10,000 lb. WLL

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with alloy swivel latch hook connections.
All dimensions in inches unless otherwise noted.
Quick and easy lifting of loads with two hoists. Lifting must be done within 5° of vertical.
Ideally suited to low headroom applications.
Alloy swivel hook bottom standard connection.
Load-bearing swivel hook, eye hook, and custom connections available.

Made in the USA!

Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	Spread in Feet - L								Other Dimensions
Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	6	8	10	12	14	16	18	20	Other Dimensions
10,000	Part number HR= Weight	16443 22.31 300	16444 22.31 380	16445 22.31 470	16446 23.31 670	16447 23.31 920	16448 23.31 1,040	16449 25.31 1,005	16450 25.31 1,305	A 3.0 B 5.0 C 1.00 D 0.75 E 1.56
* Call for specifications on larger sizes and capacities 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
16443	6 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	300 lbs	$4904.90	+ -
16444	8 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	380 lbs	$5344.56	+ -
16445	10 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	470 lbs	$5880.39	+ -
16446	12 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	670 lbs	$6443.69	+ -
16447	14 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	920 lbs	$7268.05	+ -
16448	16 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	1040 lbs	$7831.35	+ -
16449	18 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	1005 lbs	$7982.49	+ -
16450	20 Ft. 10,000 lb. WLL Twin Hoist Lifting Beam	M&W	1305 lbs	$9150.32	+ -
