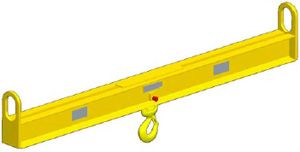

Twin Hoist 20,000 lb. WLL

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with alloy swivel latch hook connections.
All dimensions in inches unless otherwise noted.
Quick and easy lifting of loads with two hoists. Lifting must be done within 5° of vertical.
Ideally suited to low headroom applications.
Alloy swivel hook bottom standard connection.
Load-bearing swivel hook, eye hook, and custom connections available.

Made in the USA!

Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	Spread in Feet - L						Other Dimensions
Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	6	8	10	12	14	16	Other Dimensions
20,000	Part number HR= Weight	16459 27.53 370	16460 27.53 585	16461 29.53 725	16462 32.53 975	16463 32.53 1,565	16464 32.53 1,770	A 4.0 B 7.0 C 1.25 D 1.00 E 2.28
* Call for specifications on larger sizes and capacities 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
16459	6 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	370 lbs	$6141.43	+ -
16460	8 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	585 lbs	$7089.44	+ -
16461	10 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	725 lbs	$7803.88	+ -
16462	12 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	975 lbs	$8628.23	+ -
16463	14 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	1565 lbs	$10153.28	+ -
16464	16 Ft. 20,000 lb. WLL Twin Hoist Lifting Beam	M&W	1770 lbs	$10730.33	+ -
