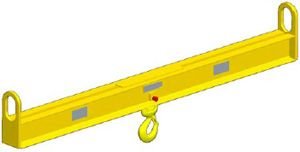

Twin Hoist 4,000 lb. WLL

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with alloy swivel latch hook connections.
All dimensions in inches unless otherwise noted.
Quick and easy lifting of loads with two hoists. Lifting must be done within 5° of vertical.
Ideally suited to low headroom applications.
Alloy swivel hook bottom standard connection.
Load-bearing swivel hook, eye hook, and custom connections available.

Made in the USA!

Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	Spread in Feet - L								Other Dimensions
Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	6	8	10	12	14	16	18	20	Other Dimensions
4,000	Part number HR= Weight	16427 15.10 140	16428 16.10 191	16429 16.10 260	16430 17.10 320	16431 18.10 560	16432 18.10 640	16433 19.10 765	16434 20.10 1,055	A 3.0 B 5.0 C 0.88 D 0.63 E 0.96
* Call for specifications on larger sizes and capacities 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
16427	6 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	140 lbs	$2830.28	+ -
16428	8 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	191 lbs	$3160.02	+ -
16429	10 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	260 lbs	$3503.50	+ -
16430	12 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	320 lbs	$3709.59	+ -
16431	14 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	560 lbs	$5014.81	+ -
16432	16 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	640 lbs	$5399.51	+ -
16433	18 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	765 lbs	$6938.31	+ -
16434	20 Ft. 4,000 lb. WLL Twin Hoist Lifting Beam	M&W	1055 lbs	$7652.74	+ -
