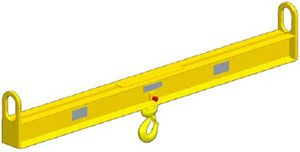

Twin Hoist 6,000 lb. WLL

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with alloy swivel latch hook connections.
All dimensions in inches unless otherwise noted.
Quick and easy lifting of loads with two hoists. Lifting must be done within 5° of vertical.
Ideally suited to low headroom applications.
Alloy swivel hook bottom standard connection.
Load-bearing swivel hook, eye hook, and custom connections available.

Made in the USA!

Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	Spread in Feet - L								Other Dimensions
Working Load Limit in Pounds	Part Number Headroom(in) Weight(lbs) Price	6	8	10	12	14	16	18	20	Other Dimensions
6,000	Part number HR= Weight	16435 16.50 150	16436 17.50 225	16437 18.50 265	16438 18.50 485	16439 19.50 600	16440 19.50 690	16441 20.50 960	16442 20.50 1,260	A 3.0 B 5.0 C 1.00 D 0.63 E 1.08
* Call for specifications on larger sizes and capacities 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
16435	6 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	150 lbs	$3063.85	+ -
16436	8 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	225 lbs	$3338.63	+ -
16437	10 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	265 lbs	$4025.59	+ -
16438	12 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	485 lbs	$4685.07	+ -
16439	14 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	600 lbs	$5674.30	+ -
16440	16 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	690 lbs	$6141.43	+ -
16441	18 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	960 lbs	$7254.31	+ -
16442	20 Ft. 6,000 lb. WLL Twin Hoist Lifting Beam	M&W	1260 lbs	$8325.97	+ -
