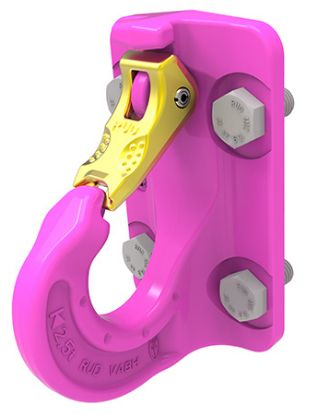

VABH-B Excavator hook for bolting

Excavator hook used as a lifting point for spreader bars.
1. Operating range: 120°
2. Permissible loading: 45° in lateral pull direction
Extremely robust forged safety latch.
Supplied with RUD special bolts 100% crack inspected
and provided with special corrosion protection Delta ton.
Non protruding tip of the hook - no unintentional hooking in.
Special wide hook tip avoids improper use
thus no hook in smaller openings.
Patented wear marks on the hook.
Measurable overload indicator

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

All types in special
thread lengths available.

Call for special order 866-392-2829

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

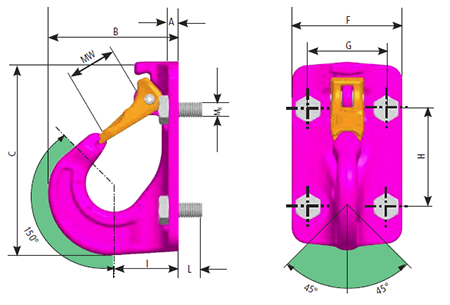

VABH-B specifications

Type	Part Number	WLL (lbs)	MW	A	B	C	F	G	H	I	L	RUD universal bolt	WT (lbs)
VABH-B 1.5t	7991205	3300	0.98	0.26	3.07	4.61	2.76	1.89	2.36	1.50	0.59	4 x M10	2.0
VABH-B 2.5t	7991206	5500	1.18	0.30	3.98	5.83	3.35	2.36	2.95	1.93	0.71	4 x M12	3.9
VABH-B 4t	7991207	8800	1.38	0.39	4.80	6.73	4.09	2.76	3.54	2.32	0.98	4 x M16	7.1
VABH-B 6.5t	8502238	15000	1.57	0.47	6.14	8.19	4.72	3.35	4.33	2.76	1.18	4 x M20	12.5

Part Number	Description	Brand	Weight	Price	Quantity
7991205	VABH-B 1.5t Excavator hook for bolting	RUD	2 lbs	$387.45	+ -
7991206	VABH-B 2.5t Excavator hook for bolting	RUD	3.9 lbs	$410.55	+ -
7991207	VABH-B 4t Excavator hook for bolting	RUD	7.1 lbs	$548.10	+ -
8502238	VABH-B 6.5t Excavator hook for bolting	RUD	12.5 lbs	$1023.75	+ -
