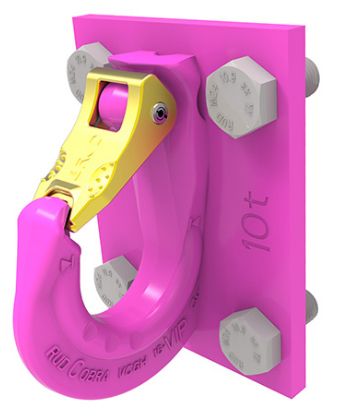

VCGH-G Excavator Hook

Excavator hook used as a lifting point for wire rope slings,
round slings and lifting means with an oval suspension ring or eye.
With a stable hook securing mechanism comparable to that of the VCGH.
Min. bolt quality is 10.9. Only the provided bolts should be used.
The surface is pink powder coated.

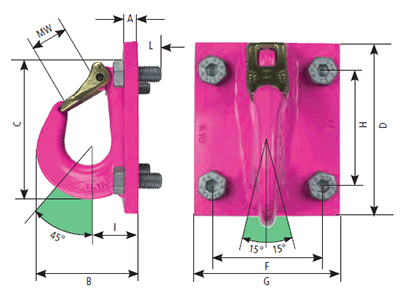

Pay attention to the permissible load direction.

Permissible operating range up to max. 45° and
Permissible loading 615° in lateral pull direction.
Extremely robust forged safety latch.
Supplied with RUD special bolts, 100% crack inspected and
provided with special corrosion protection Deltaton.
Due to limited operation range, assembly should be in direction of pull.
*Not all sizes are stocked in the US.
