Vinyl Coated Galvanized Cable

Vinyl / PVC Galvanized Cable- Commonly referred to as Coated Aircraft Cable
All cable is manufactured in accordance with the International Standard ASTM A 1023

NOT FOR OVERHEAD LIFTING!
NEVER EXCEED CAPACITY.
DO NOT USE FOR LIFTING PEOPLE OR LOADS OVER PEOPLE.

FEATURES: ORDER CABLE BELOW

The galvanized cable is coated in a clear Vinyl or PVC.
Vinyl is widely used as a shorthand name for PVC (polyvinyl chloride)

When using wire rope clips or compression sleeves with vinyl coated cables, match fitting size to uncoated cable diameter.
Strip coating off cable where fittings will be positioned for full holding power

7x7 Construction
Consists of seven strands of seven wires.
Generally used for small diameters. Less flexible than 7x19 construction, but it offers
Better abrasion resistance.

7x19 Construction
Consists of seven strands of nineteen wires.
Most flexible and widely used constructions well suited for a multitude of applications.

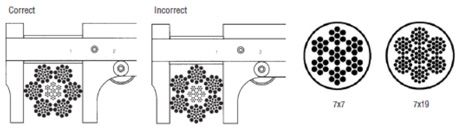

Measuring Wire Rope
The diameter of a wire rope is the diameter of the circle which encloses all the wires.
When measuring wire rope, it is important to take the greatest distance of the outer limits of the ‘crowns’ of the two opposite strands.
A measurement across the valleys will result in incorrect (lower) readings.

Part Number	Wire Size	Coated to: Size	Construction	Working Load	Break Strength	Reel Length	Weight per Reel
VGAC062-093-250	1/16"	3/32"	7x7	96 Lbs	480 Lbs	250	2.5 Lbs
VGAC062-093-500	1/16"	3/32"	7x7	96 Lbs	480 Lbs	500	5 Lbs
VGAC062-093-1000	1/16"	3/32"	7x7	96 Lbs	480 Lbs	1000	10 Lbs

VGAC093-125-250	3/32"	1/8"	7x7	184 Lbs	920 Lbs	250	5 Lbs
VGAC093-125-500	3/32"	1/8"	7x7	184 Lbs	920 Lbs	500	9 Lbs
VGAC093-125-1000	3/32"	1/8"	7x7	184 Lbs	920 Lbs	1000	19 Lbs

VGAC125-187-250	1/8"	3/16"	7x7	340 Lbs	1,700 Lbs	250	9 Lbs
VGAC125-187-500	1/8"	3/16"	7x7	340 Lbs	1,700 Lbs	500	18 Lbs
VGAC125-187-1000	1/8"	3/16"	7x7	340 Lbs	1,700 Lbs	1000	35 Lbs

VGAC187-250-250	3/16"	1/4"	7x19	840 Lbs	4,200 Lbs	250	19 Lbs
VGAC187-250-500	3/16"	1/4"	7x19	840 Lbs	4,200 Lbs	500	38 Lbs
VGAC187-250-1000	3/16"	1/4"	7x19	840 Lbs	4,200 Lbs	1000	77 Lbs

VGAC250-312-250	1/4"	5/16"	7x19	1,400 Lbs	7,000 Lbs	250	31 Lbs
VGAC250-312-500	1/4"	5/16"	7x19	1,400 Lbs	7,000 Lbs	500	62 Lbs
VGAC250-312-1000	1/4"	5/16"	7X19	1,400 Lbs	7,000 Lbs	1000	123 Lbs

VGAC312-375-250	5/16"	3/8"	7x19	1,960 Lbs	9,800 Lbs	250	49 Lbs
VGAC312-375-500	5/16"	3/8"	7x19	1,960 Lbs	9,800 Lbs	500	98 Lbs
VGAC312-375-1000	5/16"	3/8"	7x19	1,960 Lbs	9,800 Lbs	1000	197 Lbs

VGAC375-437-250	3/8"	7/16"	7x19	2,880 Lbs	14,400 Lbs	250	67 Lbs
VGAC375-437-500	3/8"	7/16"	7x19	2,880 Lbs	14,400 Lbs	500	134 Lbs
VGAC375-437-1000	3/8"	7/16"	7x19	2,880 Lbs	14,400 lBS	1000	270 Lbs

ORDER CABLE BELOW
Weight and Pricing per reel

Part Number	Description	Brand	Weight	Price	Quantity
VGAC062-093-1000	1/16” (7x7) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	10 lbs	$67.99	+ -
VGAC062-093-250	1/16” (7x7) Vinyl Coated Galvanized Air Craft Cable x 250 Ft.	Import	2.5 lbs	$19.52	+ -
VGAC062-093-500	1/16” (7x7) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	5 lbs	$35.68	+ -
VGAC250-312-1000	1/4” (7x19) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	123 lbs	$513.37	+ -
VGAC250-312-250	1/4” (7x19) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	31 lbs	$133.05	+ -
VGAC250-312-500	1/4” (7x19) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	62 lbs	$256.12	+ -
VGAC125-187-1000	1/8” (7x7) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	35 lbs	$183.82	+ -
VGAC125-187-250	1/8” (7x7) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	9 lbs	$46.83	+ -
VGAC125-187-500	1/8” (7x7) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	18 lbs	$90.35	+ -
VGAC187-250-1000	3/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	77 lbs	$340.37	+ -
VGAC187-250-250	3/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	19 lbs	$84.20	+ -
VGAC187-250-500	3/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	38 lbs	$171.51	+ -
VGAC093-125-1000	3/32” (7x7) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	19 lbs	$86.51	+ -
VGAC093-125-250	3/32” (7x7) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	5 lbs	$24.14	+ -
VGAC093-125-500	3/32” (7x7) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	9 lbs	$44.91	+ -
VGAC375-437-1000	3/8” (7x19) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	270 lbs	$753.85	+ -
VGAC375-437-250	3/8” (7x19) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	67 lbs	$217.29	+ -
VGAC375-437-500	3/8” (7x19) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	134 lbs	$376.92	+ -
VGAC312-375-1000	5/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 1000 Ft.	Import	197 lbs	$682.60	+ -
VGAC312-375-250	5/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 250 Ft.	Import	49 lbs	$175.35	+ -
VGAC312-375-500	5/16” (7x19) Vinyl Coated Galvanized Air Craft Cable 500 Ft.	Import	98 lbs	$348.06	+ -
