    • RUD® Lifting & Lashing Points
    • Weld On

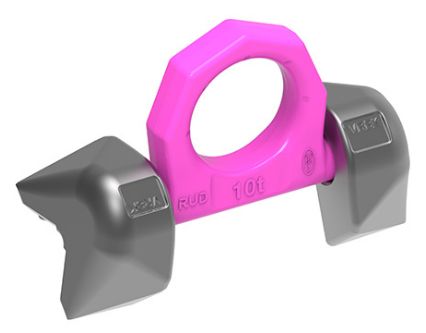

    • VRBK-FIX / VRBK Load Ring for corners
    • VRBK-FIX / VRBK - Load ring welded for 90° - corners
    VRBK-FIX / VRBK - Load ring welded for 90° - corners
    • VRBK-FIX / VRBK - Load ring welded for 90° - corners VRBK-FIX / VRBK - Load ring welded for 90° - corners
    VRBK-FIX / VRBK - Load ring welded for 90° - corners

    VRBK-FIX / VRBK - Load ring welded for 90° - corners

    • $148.05
    • Weight
      2.3000 lbs
    • SKU
      7902149
    • Welded on the corner, it reduces the number of lifting points,
              because instead of welding lifting points either on the top or
              on the side this type can be centrally located.
    • Forged, suspension ring acc. to EN 1677-1, electromagnetic crack
              detected, pink powder coated.
    • Loadable in any direction.
    • Safety factor 4 : 1.
    • Favorable force introduction due to the two point attachment
    • Low profile and 270° pivoting.
    • Welding blocks and ring body fix connected by special radial clamp spring
    • Easy adjustment of the ring body
    • Ring body stays in position
    • Easy painting
    • No loose parts
    • No rattling
    • Process reliability at welding: dimension E is assured


    RUD Chain

    Lifting Points Logo

    Loadable in any direction

    All RUD - CAD files
    available upon request.

    DXF 2d CAD File
    IGES 3D CAD File
    STEP 3D CAD File





    Click here for WLL

    click here to get adobe reader
    Download WLL
    (307 kb)

    Click above for
    working load limit at various
    angle & ring configurations

    A .pdf reader is required.

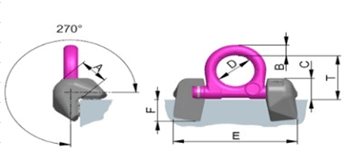

    VRBK for corners specifications





    Type
    Part Number
    WLL (Lbs)
    DIMENSIONS INCHES
    Weight (Lbs.)
    A
    B
    C
    D
    E
    F
    a
    T
    VRBK-FIX 4t
    7902149
    8,800 Lbs
    1.25"
    0.55"
    1.13"
    1.88"
    5.56"
    1.19"
    HY 4+3
    2.56"
    2.30
    VRBK-FIX 6.7t
    7902150
    15,000 Lbs
    1.56"
    0.78"
    1.38"
    2.38"
    7.13"
    1.34"
    HY 5+3
    3.31"
    4.80
    VRBK-FIX 10t
    7902256
    22,000 Lbs
    2.06"
    0.88"
    1.81"
    2.56"
    8.34"
    1.81"
    HY 8+3
    3.69"
    9.70
    VRBK-4 (270°Pivot)
    7992879
    8,800 Lbs
    1.25"
    0.55"
    1.13"
    1.88"
    5.56"
    1.19"
    HY 4+3
    2.56"
    2.30
    VRBK-6.7 (270°Pivot)
    7992880
    15,000 Lbs
    1.56"
    0.78"
    1.38"
    2.38"
    7.13"
    1.34"
    HY 5+3
    3.31"
    4.80
    VRBK-16 (270°Pivot)
    7992881
    22,000 Lbs
    2.06"
    0.88"
    1.81"
    2.56"
    8.34"
    1.81"
    HY 8+3
    3.69"
    9.70
    7992881 7992880 7992879 7902256 7902150 7902149
    7992881 7992880 7992879 7902256 7902150 7902149
    • Part Number
      7902149, 7902150, 7902256, 7992879, 7992880, 7992881
    • Description
      VRBK-FIX 4t Load ring welded, VRBK-FIX 6.7t Load ring welded, VRBK-FIX 10t Load ring welded, VRBK-4 (270°Pivot) Load ring welded, VRBK-6.7 (270°Pivot) Load ring welded, VRBK-16 (270°Pivot) Load ring welded
    • Brand
      RUD, Made in the USA
    Part Number Description Brand Weight Price Quantity
    7902149 VRBK-FIX 4t Load ring welded RUD 2.3 lbs $148.05 + -
    7902150 VRBK-FIX 6.7t Load ring welded RUD 4.8 lbs $207.90 + -
    7902256 VRBK-FIX 10t Load ring welded RUD 9.7 lbs $249.90 + -
    7992879 VRBK-4 (270°Pivot) Load ring welded RUD 2.3 lbs $155.40 + -
    7992880 VRBK-6.7 (270°Pivot) Load ring welded RUD 4.8 lbs $219.45 + -
    7992881 VRBK-16 (270°Pivot) Load ring welded RUD 9.7 lbs $241.50 + -
    • $148.05
