VRBS-Fix Load Ring

Weld-on parts without bothersome subsurface
corrosion due to circular HY-weld seam.
Smaller weld seam compared to the previous VRBS.
Total length and total width identical to the previous VRBS.
No time-consuming alignment between the weld-on
blocks and ring. Clamp spring is protected placed
inside the weld-on block. The spring fixes the weld-on
blocks to the ring and creates at the same time a radial
clamping. No loose items.
Clamping spring avoids rattling noise.
Recognition of inclination angle indicated by markings
on the ring and on the blocks in all levels.

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

VRBS-Fix

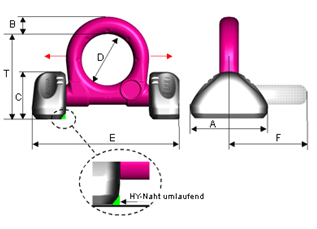

Type	Part Number	WLL (Lbs)	DIMENSIONS INCHES							Weight (Lbs.)
Type	Part Number	WLL (Lbs)	A	B	C	D	E	F	T	Weight (Lbs.)
VRBS-FIX 4t	7999019	8,800 Lbs	2.38"	0.56"	1.56"	1.86"	5.19"	2.72"	2.91"	2.10
VRBS-FIX 6.7t	7999020	15,000 Lbs	3.47"	0.75"	1.97"	2.38"	6.59"	3.94"	3.81"	4.90
VRBS-FIX 10t	7999021	22,000 Lbs	3.94"	0.88"	2.36"	2.56"	7.50"	0.94"	4.25"	8.20
VRBS-FIX 16t	7999301	35,300 Lbs	5.13"	1.19"	2.83"	3.53"	10.50"	5.28"	5.50"	17.60
VRBS-FIX 31.5t	7999302	69,300 Lbs	6.41"	1.66"	3.88"	5.13"	14.41"	7.69"	7.94"	40.50

Part Number	Description	Brand	Weight	Price	Quantity
7999019	VRBS-FIX 4t Load Ring	RUD	2.1 lbs	$107.10	+ -
7999020	VRBS-FIX 6.7t Load Ring	RUD	4.9 lbs	$185.85	+ -
7999021	VRBS-FIX 10t Load Ring	RUD	8.2 lbs	$320.25	+ -
7999301	VRBS-FIX 16t Load Ring	RUD	17.6 lbs	$579.60	+ -
7999302	VRBS-FIX 31.5t Load Ring	RUD	40.5 lbs	$1282.05	+ -
