VRS Starpoint

The absolute STAR among eye bolts.

Shape: Star shaped - clear distinction from standard eye bolt DIN 580.
Colour: Striking fluorescent pink powder coating.
Marking: Clear indication of WLL (in metric tonnes and lbs)
for side load direction F (not allowed with standard eye bolt).
Forged material 1.6541, alloy quenched and tempered,
100% electro magnetic crack detected according to EN 1677-4.
Loadable in any direction: Safety factor 4:1

Work piece material must conform to minimum steel quality S235JR (1.0037).
Counter sink of tapped hole = nominal thread diameter.
Provide plane seat of the special hexagon bolt.
VRS must be able to rotate by 360° in bolted condition.
Adjust to load direction before loading.
Design information available on CD-ROM.
Component protected by patents: Europe patent EP 654 611.US patent 5690457.
Specifically engineered Grade 10.9 captive hexagon socket screw.
Type VRS-F including the locking device /STAR KEY). For fitting the STARPOINT is delivered with an integrated installation tool.
Just engage tool into the hexagon socket screw - tighten by hand disengage tool. STARPOINT then adjustable 360°.
Type VRS without installation tool. For assembly just use a hexagon socket screw key.

RUD Chain

Lifting Points Logo VRS StarPoint

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

All types in special
thread lengths available.

Call for special order 866-392-2829

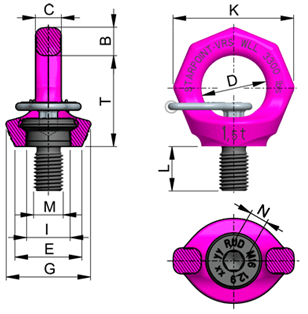

VRS drawing specifications

Download WLL
(324 kb)

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

Type	Part Number	WLL (ton)	DIMENSIONS INCHES											Weight (Lbs.)
"Metric" Threaded
Type	Part Number	WLL (ton)	T	B	C	D	E	G	K	L	M	N	I	Weight (Lbs.)
VRS-M 6	7900906	0.1 (0.5)	37	9	7	20	23	28	37	9	6	6	13	0.15
VRS-M 8	8500911	0.3 (1)	34	11	8.5	25	25	32	47	12	8	6	16	0.26
VRS-M10	7104029	0.4 (1)	34	11	8.5	25	25	32	47	15	10	6	16	0.26
VRS-M12	7101313	0.75 (2)	42	13	10	30	30	34	56	18	12	8	20	0.44
VRS-M14	7999330	0.75 (2)	42	13	10	30	30	34	56	18	14	8	20	0.46
VRS-M16	7101314	1.5 (4)	49	15	14	35	35	40	65	24	16	10	23.5	0.66
VRS-M18	7903387	1.5 (4)	49	15	14	35	35	40	65	24	18	10	23.5	0.77
VRS-M20	7101315	2.3 (6)	57	17	16	40	42	50	75	30	20	12	29	1.10
VRS-M22	7992197	2.3 (6)	57	17	16	40	42	50	75	30	22	12	29	1.10
VRS-M24	7101316	3.2 (8)	70	21	19	48	50	60	90	36	24	14	35	1.76
VRS-M30	7101317	4.5 (12)	86	26	24	60	60	75	112	45	30	17	44	3.52
VRS-M36	7984201	7 (16)	103	32	29	72	75	90	135	54	36	22	53	7.70
VRS-M42	7984202	9 (24)	120	38	34	82	85	105	158	63	42	24	61.5	10.78
VRS-M48	7984203	12 (32)	137	43	38	94	100	120	180	72	48	27	70.5	15.40
"UNC" Threaded
Type	Part Number	WLL (Lbs)	T	B	C	D	E	G	K	L	M	N	I	Weight (Lbs.)
VRS-1/4”- 20UNC	7999105	220 (1100)	1.06	0.34	0.28	0.75	0.91	1.11	1.44	0.34	1/4"	7/32"	0.5	0.13
VRS-5/16”-18UNC	7999106	660 (2090)	1.34	0.44	0.34	1	1	1.13	1.88	0.47	5/16"	1/4"	0.56	0.25
VRS-3/8“-16UNC	7104480	880 (2200)	1.34	0.44	0.34	1	1	1.13	1.88	0.56	3/8"	1/4"	0.59	0.26
VRS-7/16”-14UNC	7999272	880 (2200)	1.34	0.44	0.34	1	1	1.13	1.88	0.59	7/16"	1/4"	0.59	0.26
VRS-1/2“-13UNC	7104481	1650 (4400)	1.66	0.5	0.34	1.19	1.19	1.34	2.19	0.75	1/2"	5/16"	0.71	0.45
VRS-5/8“-11UNC	7104482	3300 (8820)	1.94	0.59	0.56	1.38	1.38	1.56	2.56	0.94	5/8"	3/8"	0.88	0.75
VRS-3/4“-10UNC	7104483	5070 (13250)	2.25	0.66	0.63	1.56	1.56	2	2.94	1.19	3/4"	1/2"	1.09	1.20
VRS-7/8“-9UNC	7104484	5070 (13250)	2.25	0.66	0.63	1.56	1.56	2	2.94	1.31	7/8"	1/2"	1.09	1.30
VRS-1“- 8UNC	7104485	7050 (17630)	2.72	0.81	0.75	1.88	1.88	2.38	3.53	1.5	1"	9/16"	1.31	2.20
VRS-1 1/8"-7 UNC	7999384	7050 (17630)	2.72	0.81	0.75	1.88	1.88	2.38	3.53	1.5	1-1/8"	9/16"	1.31	2.20
VRS-1 1/4“-7UNC	7104486	9920 (26450)	3.38	1	0.94	2.38	2.38	2.94	4.41	1.88	1-1/4"	5/8"	1.63	4.20
VRS-1 1/2“-6UNC	7104487	15430 (35270)	4.00	1.25	1.13	2.84	2.94	3.53	5.31	2.13	1-1/2"	7/8"	1.94	7.60
VRS-1 3/4“-5UNC	7104488	19480 (52910)	4.75	1.5	1.34	3.22	3.34	4.13	6.25	2.5	1-3/4"	1"	2.28	11.60
VRS-2“- 4.5UNC	7104489	26450 (70540)	5.38	1.69	1.5	3.69	3.94	4.75	7.06	2.81	2"	1-1/8"	2.59	17.50

Part Number	Description	Brand	Weight	Price	Quantity
7101313	VRS-M12 VRS Starpoint	RUD	0.44 lbs	$99.75	+ -
7101314	VRS-M16 VRS Starpoint	RUD	0.66 lbs	$117.60	+ -
7101315	VRS-M20 VRS Starpoint	RUD	1.1 lbs	$152.25	+ -
7101316	VRS-M24 VRS Starpoint	RUD	1.76 lbs	$208.95	+ -
7101317	VRS-M30 VRS Starpoint	RUD	3.52 lbs	$297.15	+ -
7104029	VRS-M10 VRS Starpoint	RUD	0.26 lbs	$89.25	+ -
7104480	VRS-3/8“-16UNC VRS Starpoint	RUD	0.26 lbs	$89.25	+ -
7104481	VRS-1/2“-13UNC VRS Starpoint	RUD	0.45 lbs	$99.75	+ -
7104482	VRS-5/8“-11UNC VRS Starpoint	RUD	0.75 lbs	$117.60	+ -
7104483	VRS-3/4“-10UNC VRS Starpoint	RUD	1.2 lbs	$168.60	+ -
7104484	VRS-7/8“-9UNC VRS Starpoint	RUD	1.3 lbs	$168.00	+ -
7104485	VRS-1“- 8UNC VRS Starpoint	RUD	2.2 lbs	$208.95	+ -
7104486	VRS-1 1/4“-7UNC VRS Starpoint	RUD	4.2 lbs	$297.15	+ -
7104487	VRS-1 1/2“-6UNC VRS Starpoint	RUD	7.6 lbs	$519.75	+ -
7104488	VRS-1 3/4“-5UNC VRS Starpoint	RUD	11.6 lbs	$633.15	+ -
7104489	VRS-2“- 4.5UNC VRS Starpoint	RUD	17.5 lbs	$877.80	+ -
7900906	VRS-M 6 VRS Starpoint	RUD	0.15 lbs	$94.50	+ -
7903387	VRS-M18 VRS Starpoint	RUD	0.77 lbs	$139.65	+ -
7984201	VRS-M36 VRS Starpoint	RUD	7.7 lbs	$477.75	+ -
7984202	VRS-M42 VRS Starpoint	RUD	10.78 lbs	$666.75	+ -
7984203	VRS-M48 VRS Starpoint	RUD	15.4 lbs	$828.45	+ -
7992197	VRS-M22 VRS Starpoint	RUD	110 lbs	$176.40	+ -
7999105	VRS-1/4”- 20UNC VRS Starpoint	RUD	0.13 lbs	$106.05	+ -
7999106	VRS-5/16”-18UNC VRS Starpoint	RUD	0.25 lbs	$98.70	+ -
7999330	VRS-M14 VRS Starpoint	RUD	0.46 lbs	$120.75	+ -
7999384	VRS-1 1/8"-7 VRS Starpoint	RUD	2.2 lbs	$323.40	+ -
8500911	VRS-M 8 VRS Starpoint	RUD	0.26 lbs	$89.25	+ -
