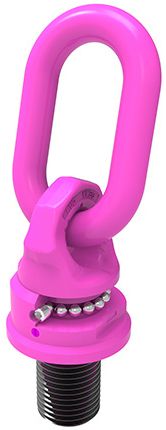

VWBG Center Pull Hoist Ring

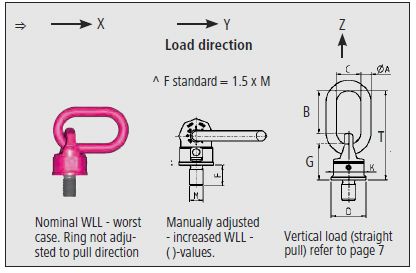

With increased WLL in axial direction and when load ring is aligned.
Surface: Pink powder coated
For all loads, which have to be flipped and turned-over.
Loadable in any direction: Safety factor 4
Can be turned under load.
Cannot be turned continuously in 90° direction at full load.
Simple assembly, just a tapped hole is required.
High tensile, tested lifting lug acc. to EN1677-4.
*Not all sizes are stocked in the US.

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

All types in special
thread lengths available.

vwbg Load Ring Ball bearing swivel specifications

Download WLL
(324 kb)

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

VWBG Load Ring Ball Bearing Swivel RUD Chain Specifications

Type	Part Number	WLL (ton) x (y) [t)	DIMENSIONS INCHES							Weight (Lbs.)
"Metric" Threaded

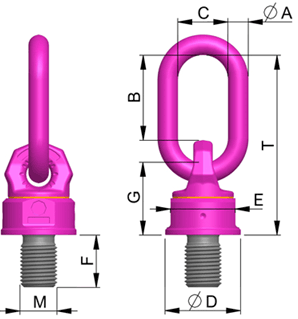

Type	Part Number	WLL (ton) x (y) [t)	A	C	D	F	E	M	T	Weight (Lbs.)
VWBG 6(7.5) M33	8600150*	6(7.5)[15]	22	50	90	54	80	33	208	12.32
VWBG 8(10)t-M36	7999059	8(10)[15]	22	50	90	54	80	36-39	208	10.27
VWBG 12(13)t-M42	7999044*	12(13)[17]	26	65	98	63	85	45-45	235	13.42
VWBG 12(15)t-M45	7900455*	12(15)[18]	26	65	98	67	85	45	235	13.73
VWBG 13(16)t-M48	7999045	13(16)[18]	26	65	98	68	85	48-52	235	14.01
VWBG 14(20)t-M52	7901081*	14(20)[25]	32	70	120	78	85	52	274	23.21
VWBG 16(22)t-M56	7999004*	16(22)[28]	32	70	120	84	95	56-62	274	23.50
VWBG 16(22)t-M60	8600454*	16(25)[28]	32	70	120	84	95	56-62	274	25.01
VWBG 16(25)t-M64	7999043	16(25)[28]	32	70	120	94	95	64-76	274	25.08
VWBG 31.5(40)t-M72	7900097*	31.5(40)[50]	46	90	170	108	145	72-76	338	65.91
VWBG 35(48)t-M80	7900100*	35(48)[50]	46	90	170	120	145	80-85	338	68.62
VWBG 40(50)t-M90	7995545*	40(50)[50]	46	90	170	135	145	90-150	338	72.95

*Call 866-392-2829 for availability and pricing - Not stocked in the US.

Part Number	Description	Brand	Weight	Price	Quantity
7999043	VWBG 16(25)t-M64 Load Ring	RUD	25.08 lbs	$2297.00	+ -
7999045	VWBG 13(16)t-M48 Load Ring	RUD	14 lbs	$1604.00	+ -
7999059	VWBG 8(10)t-M36 Load Ring	RUD	10.5 lbs	$1323.00	+ -
