VWBG-V Load Ring

Suitable for all loads which swivel and tilt.
Can be loaded in all directions with a 4 : 1 design factor.
Swiveling under full load is permissible provided the inclination angle is not
perpendicular to the screw - in direction.
Not suitable for permanent swiveling under full load.
Can also be supplied with variable (vario) thread lengths.
Easy assembly due to the single threaded tapping.
High tensile, inspected suspension ring.

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

All types in special
thread lengths available.

Call for special order 866-392-2829

vwbg-v specifications

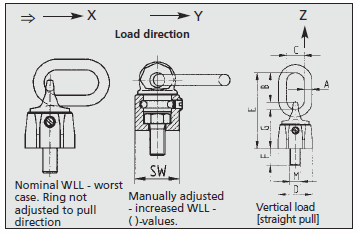

Swivels 360 degrees, pivots 180 degrees

Download WLL
(324 kb)

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

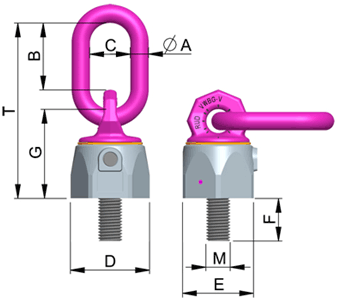

Type	Part Number	WLL (ton) x (y) [t)	DIMENSIONS INCHES									Weight (Lbs.)
"Metric" Threaded
Type	Part Number	WLL (ton) x (y) [t)	A	B	C	D	T	F	G	M	E	Weight (Lbs.)
VWBG-V 0.3-M8	7103720	0.3 (0.4) [0.6]	8	31	29	30	73	13	36	8	28	0.40
VWBG-V 0.45-M10	7103715	0.45 (0.6) [0.9]	8	31	29	36	78	17	38	10	30	0.64
VWBG-V 0.6-M12	7100180	0.6 (0.75) [1.2]	10	49	35	42	107	21	47	12	36	0.90
VWBG-V 1.0-M14	8600337	1.0 (1.25) [2]	13	46	38	48	112	25	56	14	41	1.39
VWBG-V 1.3-M16	7100430	1.3 (1.5) [2.6]	13	46	38	48	114	25	56	16	41	1.30
VWBG-V 1.8-M18	8600338	1.8 (2.0) [3.6]	13	54	35	64	137	27	67	18	55	2.60
VWBG-V 2.0-M20	7100800	2.0 (2.5) [4]	13	54	35	64	137	33	67	20	55	3.12
VWBG-V 2.0-M22	8600334	2.0 (2.5) [4]	13	54	35	64	137	33	67	20	55	3.19
VWBG-V 3.5-M24	7100640	3.5 (4.0) [7]	18	66	40	81	173	40	88	24	70	5.79
VWBG-V 3.5-M27	8600335	3.5 (4.0) [7]	18	66	40	81	173	40	88	27	70	5.83
VWBG-V 5.0-M30	7100650	5.0 (6.0) [10]	22	90	50	99	221	50	106	30	85	11.20
"UNC" Threaded
Type	Part Number	WLL (ton) x (y) [t)	DIMENSIONS INCHES									Weight (Lbs.)
Type	Part Number	WLL (ton) x (y) [t)	A	B	C	D	T	F	G	M	E	Weight (Lbs.)
VWBG-V 0.3-5/16-18UNC	7991090	660 (880) [1,320]	0.31"	1.22"	1.16"	1.18"	3.00"	0.50"	1.42"	5/16"	1.10"	0.40
VWBG-V 0.45-3/8-16UNC	7991091	990 (1,300) [1,980]	0.31"	1.31"	1.16"	1.42"	3.06"	0.67"	1.50"	3/8"	1.18"	0.64
VWBG-V 0.6-1/2-13UNC	7991092	1,320 (1,650) [2,640]	0.38"	1.94"	1.38"	1.65"	4.22"	0.81"	1.88"	1/2"	1.42"	0.90
VWBG-V 1.3-5/8-11UNC	7991093	2,860 (3,300) [5,720]	0.50"	1.81"	1.50"	1.89"	4.50"	0.94"	2.19"	5/8"	1.61"	1.30
VWBG-V 2.0-3/4-10UNC	7991094	4,400 (5,500) [8,800]	0.50"	2.13"	1.38"	2.52"	5.38"	1.13"	2.63"	3/4"	2.17"	3.12
VWBG-V 3.5-1-8UNC	7991095	7,700 (8,800) [15,400]	0.69"	2.63"	1.56"	3.19"	6.81"	1.50"	3.47"	1"	2.76"	5.79
VWBG-V 5.0-1-1/4-7UNC	7991096	11,000 (13,200) [22,000]	0.88"	3.53"	1.97"	3.90"	8.69"	1.88"	4.19"	1-1/4"	3.35"	11.20

Part Number	Description	Brand	Weight	Price	Quantity
7100180	VWBG-V 0.6-M12	RUD	0.9 lbs	$192.15	+ -
7100430	VWBG-V 1.3-M16	RUD	1.3 lbs	$205.80	+ -
7100640	VWBG-V 3.5-M24	RUD	5.79 lbs	$463.05	+ -
7100650	VWBG-V 5.0-M30	RUD	11.2 lbs	$617.40	+ -
7100800	VWBG-V 2.0-M20	RUD	3.12 lbs	$332.85	+ -
7103715	VWBG-V 0.45-M10	RUD	0.64 lbs	$187.95	+ -
7103720	VWBG-V 0.3-M8	RUD	0.4 lbs	$176.40	+ -
7991090	VWBG-V 0.3-5/16-18UNC	RUD	0.4 lbs	$234.15	+ -
7991091	VWBG-V 0.45-3/8-16UNC	RUD	0.64 lbs	$241.50	+ -
7991092	VWBG-V 0.6-1/2-13UNC	RUD	0.9 lbs	$264.60	+ -
7991093	VWBG-V 1.3-5/8-11UNC	RUD	1.3 lbs	$286.65	+ -
7991094	VWBG-V 2.0-3/4-10UNC	RUD	3.12 lbs	$434.70	+ -
7991095	VWBG-V 3.5-1-8UNC	RUD	5.79 lbs	$604.80	+ -
7991096	VWBG-V 5.0-1-1/4-7UNC	RUD	11.2 lbs	$792.75	+ -
8600334	VWBG-V 2.0-M22	RUD	3.19 lbs	$533.40	+ -
8600335	VWBG-V 3.5-M27	RUD	5.83 lbs	$1088.85	+ -
8600337	VWBG-V 1.0-M14	RUD	1.39 lbs	$466.20	+ -
8600338	VWBG-V 1.8-M18	RUD	2.6 lbs	$556.50	+ -
