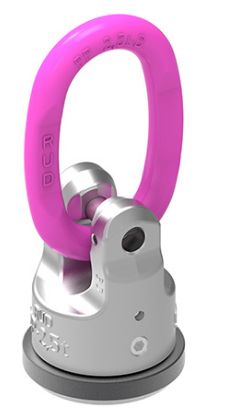

WPP-B PowerPoint® Ring Connection

Can be turned even in a 90° position under
full load from the bolt center line.
Warranty can only be given when assembled
with original RUD components and chains!
Clear identification of the WLL
Safety factor 4 : 1
Cr, Ni, Mo steel quenched and temperated in special steel
All components 100% crack detected
Max. WLL with smallest welding surface
Fluorescent pink powder coated
No damage due to safe transport,
fast amortization because of easy handling
Not suitable for permanent swiveling under full load.

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

wpp-b specifications

Type	PART NUMBER	DIMENSIONS INCHES									WEIGHT (Lbs.)
Type	PART NUMBER	WLL (Lbs)	A	B	C	D	T	G	N	WELD	WEIGHT (Lbs.)
WPP-B-0.63t	7989954	1,385 Lbs	0.35"	2.56"	1.38"	1.57"	4.13"	1.57"	0.59"	3.5	0.80
WPP-B-1.5t	7989955	3,300 Lbs	0.43"	2.56"	1.38"	1.81"	1.53"	1.97"	0.59"	4.5	1.30
WPP-B-2.5t	7989956	5,500 Lbs	0.51"	2.91"	1.57"	2.40"	5.31"	2.40"	0.71"	HY3+5	2.20
WPP-B-4t	7989957	8,800 Lbs	0.63"	3.74"	1.77"	3.07"	6.77"	3.03"	0.79"	HY3+6	5.10
WPP-B-5t	7989958	11,000 Lbs	0.75"	5.12"	2.36"	3.74"	8.78"	3.66"	0.98"	HY3+8	10.40
WPP-B-8t	7989959	17,600 Lbs	0.94"	5.51"	2.56"	3.94"	9.53"	4.02"	1.10"	HY3+10	11.70
( ) increased WLL in vertical load direction (straight lift)

Part Number	Description	Brand	Weight	Price	Quantity
7989954	WPP-B-0.63t PowerPoint® Ring Connection	RUD	0.8 lbs	$187.95	+ -
7989955	WPP-B-1.5t PowerPoint® Ring Connection	RUD	1.3 lbs	$219.45	+ -
7989956	WPP-B-2.5t PowerPoint® Ring Connection	RUD	2.2 lbs	$316.05	+ -
7989957	WPP-B-4t PowerPoint® Ring Connection	RUD	5 lbs	$430.50	+ -
7989958	WPP-B-5t PowerPoint® Ring Connection	RUD	10 lbs	$627.90	+ -
7989959	WPP-B-8t PowerPoint® Ring Connection	RUD	11.8 lbs	$741.30	+ -
