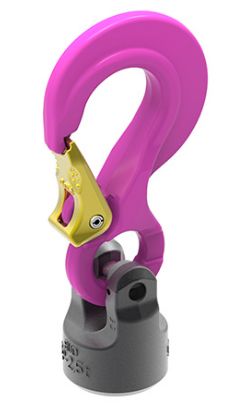

WPPH-Star PowerPoint® Universal Connection

Loaded from any angle, swivels and pivots
Easy identification of WLL
Safety factor 4:1
Cr, Ni, Mo-steel special quenched and tempered
All parts 100% crack detected
Max. WLL at smallest welding surface
Pink powder coated components
Fast amortization due to better handling,
no damage owing to safe transport
Unsuitable for turning loads, use the WPP instead

WPPH-S

The first generation of lifting points for welding with a universal connection for every slinging means
(hook and ring assemblies, endless sling chains, round slings, loops, etc).
Version WPPH-S: The standard universal welding connection using eye hooks for ring assemblies,
round slings, wire ropes, hook assemblies etc.

Warranty can only be given when assembled with original RUD components and chains!

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

Download WLL
(307 kb)

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

wpph-star specifications

Type	Part Number	WLL (lbs)	A	B	C	D	T	G	weld	WEIGHT (lbs)
WPPH-S-0.63t	7990722	1,385 Lbs	0.51"	2.95"	0.71"	1.34'	4.29"	1.34"	3.5	0.80
WPPH-S-1.5t	7989966	3,300 Lbs	0.79"	3.82"	0.98"	1.57"	5.55"	1.73"	4.5	2.10
WPPH-S-2.5t	7989967	5,500 Lbs	1.10"	4.96"	1.18"	2.09"	7.05"	2.09"	HY3+5	3.10
WPPH-S-4t	7989968	8,800 Lbs	1.42"	5.91"	1.38"	2.68"	8.54"	2.60"	HY3+6	7.10
WPPH-S-5t	7989969	11,000 Lbs	1.46"	6.85"	1.57"	3.27"	9.96"	3.11"	HY3+8	15.20
WPPH-S-8t	7989970	17,600 Lbs	1.93"	8.19"	1.89"	3.46"	11.65"	3.46"	HY3+10	17.60
( ) increased WLL in vertical load direction (straight lift)

Part Number	Description	Brand	Weight	Price	Quantity
7989966	WPPH-S-1.5t PowerPoint® Universal Connection	RUD	2.1 lbs	$223.65	+ -
7989967	WPPH-S-2.5t PowerPoint® Universal Connection	RUD	3.1 lbs	$233.10	+ -
7989968	WPPH-S-4t PowerPoint® Universal Connection	RUD	7.1 lbs	$325.50	+ -
7989969	WPPH-S-5t PowerPoint® Universal Connection	RUD	15.2 lbs	$562.80	+ -
7989970	WPPH-S-8t PowerPoint® Universal Connection	RUD	17.6 lbs	$767.55	+ -
7990722	WPPH-S-0.63t PowerPoint® Universal Connection	RUD	0.8 lbs	$143.85	+ -
