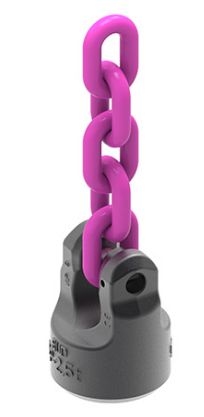

WPPH-VIP PowerPoint® Direct VIP Chain Connection

The weldable generation of lifting points for the direct connection of the 4 mm VIP - chain.
Version WPPH-VI

Warranty can only be given when assembled with original RUD components and chains!

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

wpph-vip specifications

Type	Part Number	WLL (lbs)	DIMENSIONS INCHES				WEIGHT (lbs)
Type	Part Number	WLL (lbs)	A	D	G	weld	WEIGHT (lbs)
WPPH-VIP4-0.63t	7989982	1,385 Lbs	4mm	1.34"	1.34"	3.5	0.40
WPPH-VIP6-1.5t	7989983	3,300 Lbs	6mm	1.57"	1.73"	4.5	0.80
WPPH-VIP8-2.5t	7989984	5,500 Lbs	8mm	2.09"	2.09"	HY3+5	1.70
WPPH-VIP10-4t	7989985	8,800 Lbs	10mm	2.68"	2.60"	HY3+6	4.40
WPPH-VIP13-5t	7989986	11,000 Lbs	13mm	3.27"	3.11"	HY3+8	7.10
WPPH-VIP16-8t	7989987	17,600 Lbs	16mm	3.46"	3.46"	HY3+10	9.50
( ) increased WLL in vertical load direction (straight lift)

Part Number	Description	Brand	Weight	Price	Quantity
7989982	WPPH-VIP4-0.63t PowerPoint® Direct VIP Chain Connection	RUD	0.4 lbs	$65.10	+ -
7989983	WPPH-VIP6-1.5t PowerPoint® Direct VIP Chain Connection	RUD	0.8 lbs	$85.05	+ -
7989984	WPPH-VIP8-2.5t PowerPoint® Direct VIP Chain Connection	RUD	0.2 lbs	$108.15	+ -
7989985	WPPH-VIP10-4t PowerPoint® Direct VIP Chain Connection	RUD	4.5 lbs	$147.00	+ -
7989986	WPPH-VIP13-5t PowerPoint® Direct VIP Chain Connection	RUD	7 lbs	$243.60	+ -
7989987	WPPH-VIP16-8t PowerPoint® Direct VIP Chain Connection	RUD	10 lbs	$262.50	+ -
